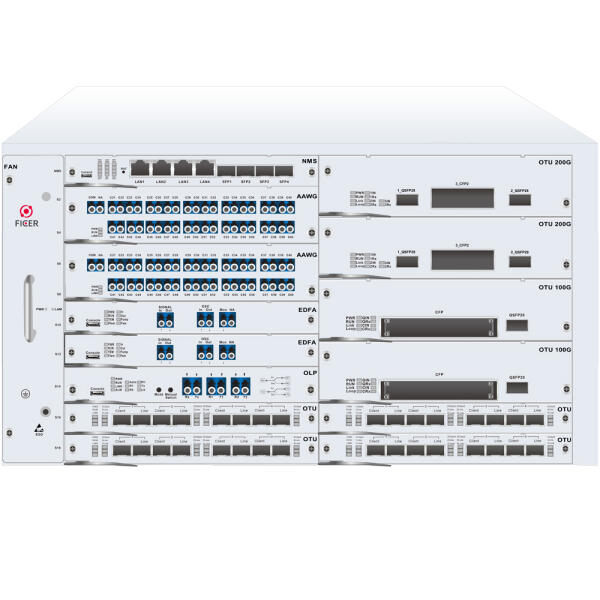

F520 5U 20-Slot Chassis
F520 5U 20-Slot Chassis
Features:
- 5U 19” Rack Compact size
- 1 Slot for Management
- 19 Slots for Service module cards
- Modular design for Power and FAN module
- Hot Pluggable, Easy Replacement
- 1+1 Balanced and Redundancy Power supply,
- AC / DC Optional & Combo
- Support SNMP-based Network management
- Support WEB, Telnet and NMS
- Visual Graphic information interface
- Support Entire network topology, elements autodiscovery and generation
- Support Voice alarm, e-mail alerts, SMS alerts, Real-time online remote monitoring
| Inquiry | Parameter | Technical indicators | Download |
|---|---|---|---|
Size Slot Power Supply Power Consumption FAN Enviornment │ Operating Temperature Enviornment │ Storage Temperature Enviornment │ Relative Humidity | 5U 19” : 482.5(W) x 350(D) x 222.5(H)mm 1-Slot for Management, 19-Slot for Service Dual Power Supply 100~240VAC, -48VDC optional < 500W 6*80mm FAN -10 ~ 60 °C -40 ~ 85 °C 5 ~ 95 RH% |  |
