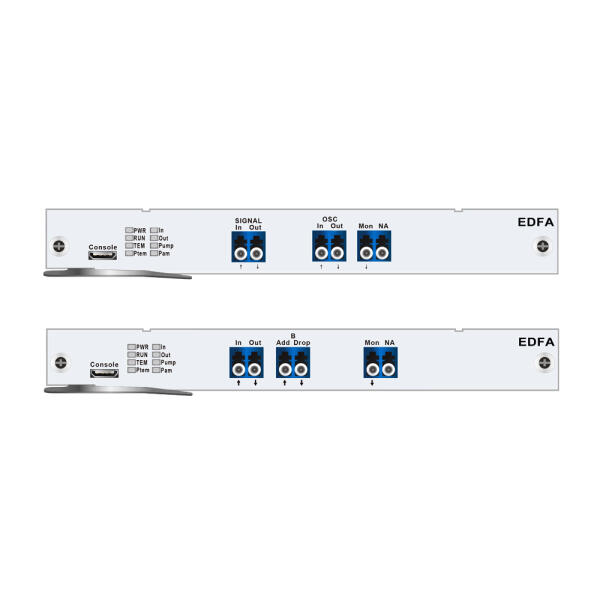

F520 EDFA (Optical Amplifier)
F520 EDFA ( Erbium-Doped Fiber Amplifier ) Series
Features:
- Low noise figure : typical 5dB
- Gain Flattening Filters (GFF) assure flat Gain (<1dB variance) over the entire amplified band
- Multiple operating modes : AGC, APC, ACC
- High performance transient response control to ensure Power, Gain stable without affecting existing signal
- Support customized saturated Output Power range up to +23dBm
- Support customized Gain variety range 8 ~ 40dB
- Support ALS (Auto Laser Shutdown)
- Support Red / Blue port for single-fiber DWDM transmission system
- Support Mid-Stage access for insertion of a DCM or OADM unit without it’s inherent loss.
- Optional OSC management channel for remote management
- Own monitoring port, real-time monitoring optical power and OSNR
- Support SNMP, WEB, Console management
- Support 4, 8, 20 slot chassis for different capacity requirement
| Inquiry | Parameter | Min / Typ / Max | Download |
|---|---|---|---|
Operating Wavelength│Standard Operating Wavelength│Extended Power Consumption Size│EDFA model Size│4-slot chassis Size│8-slot chassis Size│20-slot chassis Operating Temperature Storage Temperature Relative Humidity | 1529 ~ 1565nm 1528 ~ 1567nm ≤ 15W 191(W) x 253(D) x 20(H)mm 482.5(W) x 350(D) x 44.5(H)mm 482.5(W) x 350(D) x 89(H)mm 482.5(W) x 350(D) x 222.5(H)mm -10 ~ 60°C -40 ~ 85°C 5 ~ 95RH% |  |
