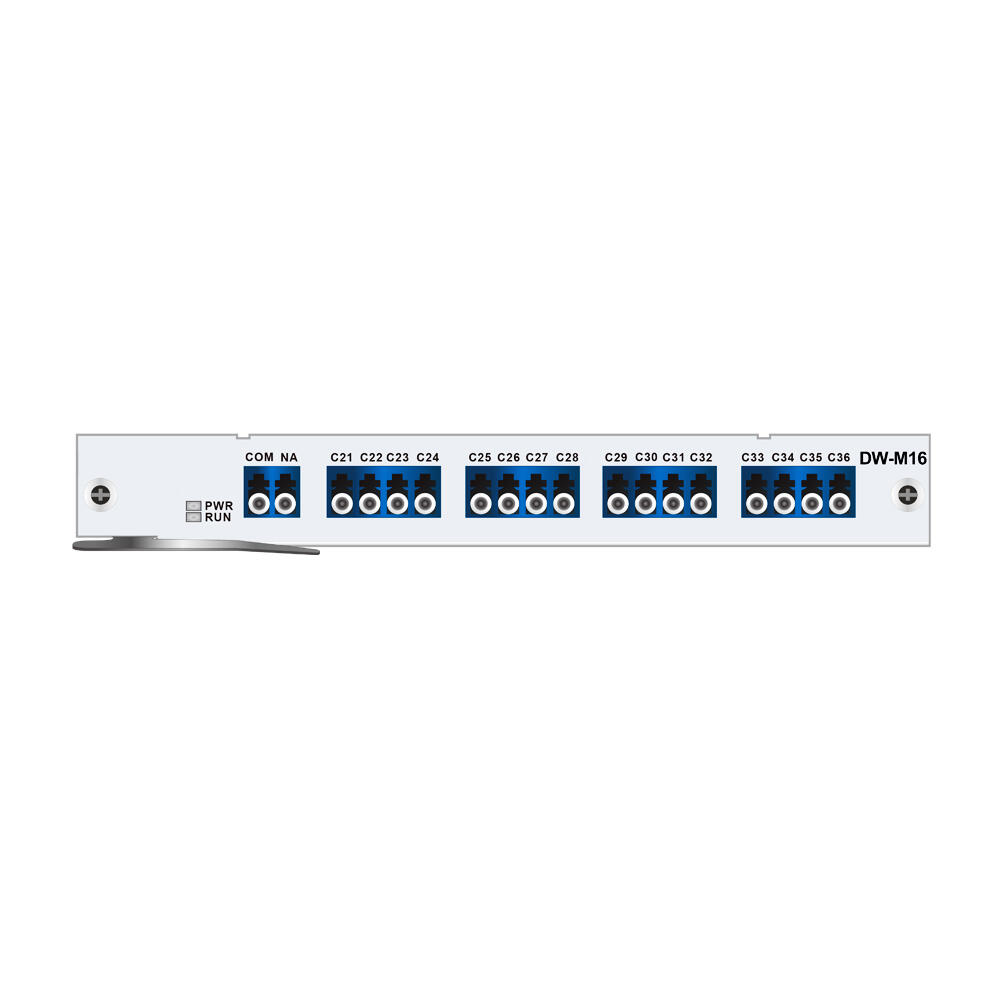

F520 CWDM Mux-Demux
CWDM MUX / DEMUX Module Card
Features:
- Support up to 16 channels
- Support Monitoring and Express channel
- Plug and play, no configuration required
- Passive products without power and cooling needs
- High Isolation and Low Insertion Loss
- High integration card package
- Stable and Reliable performance
| Inquiry | Parameters | Specification Values | Download |
|---|---|---|---|
Operating Wavelength Range Center Wavelength Accuracy Channel Spacing Maximum Handling Power Size Operating Temperature Storage Temperature Relative Humidity (no condensation) | 1260 to 1620nm ±0.5nm 20nm 300mW 191(W) x 253(D) x 20(H)mm -10 ~ +60˚C -40 ~ +85˚C 5 ~ 95RH% |  |
